A company dedicated to providing materials and hoisting solutions to roofing and construction contractors.

Our aim is to be a part of your team from enquiry to installation and removal, working with you, your scaffolders and sub contractors to deliver a seamless service. With over 15 years hoist experience our dedicated team can find the right solution for you, installed right where and when you need it using our fleet of top industry recognised products.






Click on the images below to view at full size

Click on the images below to view at full size



GEDA LIFT

Inclined hoists from GEDA have been produced for decades. Their reliability makes them a favourite transport device for roofers and construction workers

These inclined aluminium hoists have already proved their worth in various applications for different kinds of projects thousands of times. They are easy, quick and reliable transport units for interior work, refurbishment construction or repairs on flat roof buildings. GEDA can offer the appropriate load receptacle for any kind of building materials and any kind of use. With a hoisting speed of 30m/min your load can be from ground level to the top of the scaffold before you can, save time and effort by using a GEDA hoist.

The GEDA Lift 250 Comfort is a favourite with roofers able to reach up to 19m but attach a board carrier and it’s the dry liners best friend. These hoists are so adaptable you can move almost anything that you can fit on the load platform. The 110v power supply, automatic limit switches and integral carriage safety brake makes these hoists site friendly and safe.

The load bearing capacity depends on the inclination as well as their total length, as Total Hoist Solutions use the reinforced sections so even at 19m these hoists will safely lift an impressive 125kg

Specifications
Load Capacity: 200kg max, variable depending on angle/length
Speed: 30m/min
Max mast height: 19m to eaves
Power requirement: 1.3kW 110V
Load platform size:
      Universal platform 1.45m x 0.3m x 0.8m L/W/H
      Board carrier 0.5 to 1.6m wide adjustable
Max wind speed for operation: 45km/h
Duty cycle: 60%



Click on the images below to view at full size

Click on the images below to view at full size



GEDA 200Z

The GEDA 200 Z with its lightweight 2m aluminium ladder mast section is a more recent addition to the Geda range. With a 1400mm x 750mm load platform and a compact design it ideal for smaller site or where space is at a premium. The 240v powered unit can lift 200kg up to 35m. When fitted with a full height base enclosure to ensure operators and other site workers are kept at a safe distance, the overall footprint is a little over 1.5m x 1.5m in front of the scaffold. The 140kg base unit has an integral wheel set so can be simply pushed to the installation location

Specifications
Load Capacity: 200kg
Speed: 25m/min
Max mast height: 35m
Power requirement: 1.7kW 230V
Load platform size: 1.4m x 0.8m x 1.1m L/W/H
Base footprint excluding enclosure: 1.5m x 1.5m
Max wind speed for operation: 72km/h



Click on the images below to view at full size

Click on the images below to view at full size

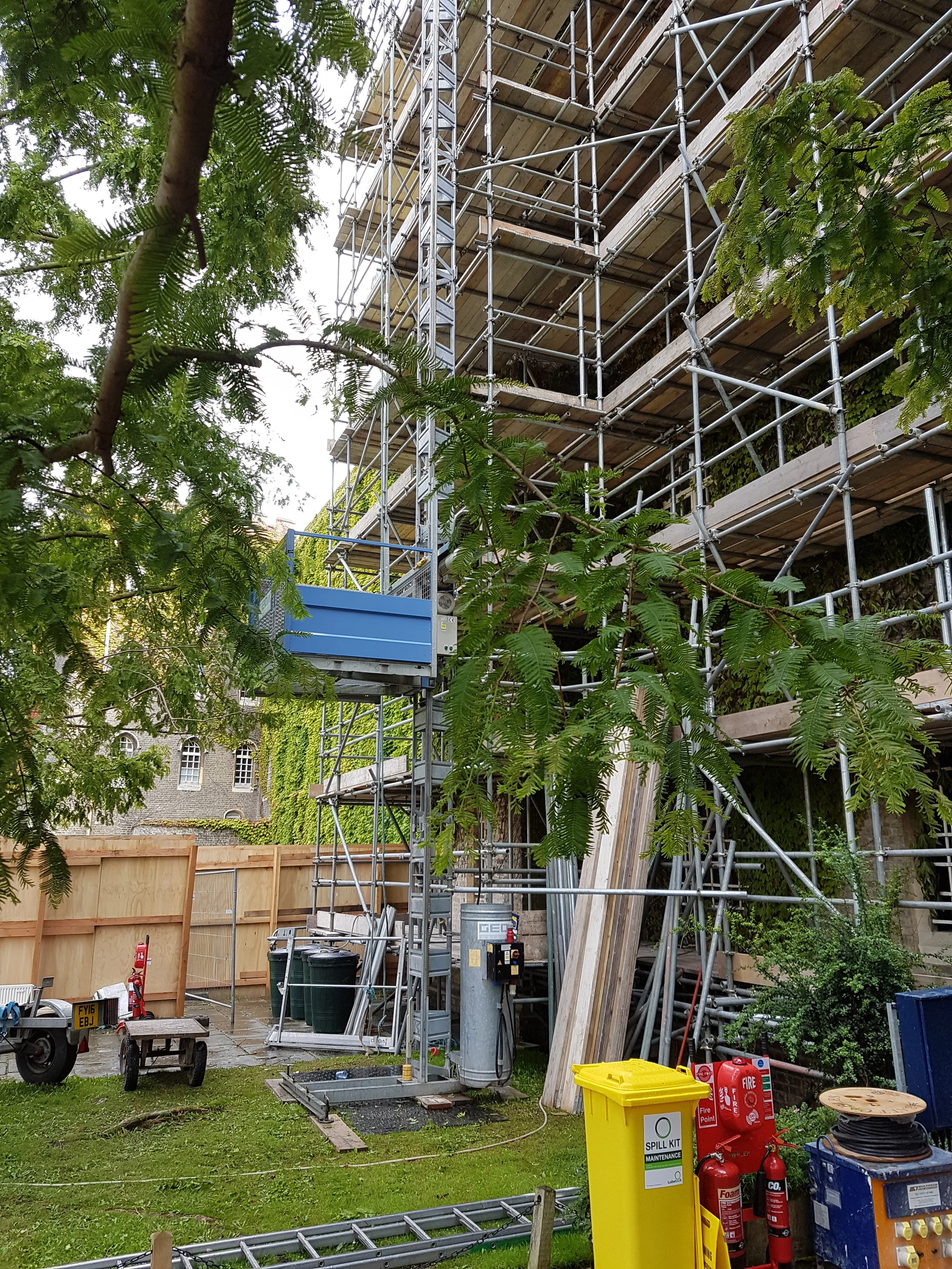

GEDA 300Z

The GEDA 300 Z with its lightweight 2m aluminum mast segments has been used on building sites for various kinds of transport for many years. With a 1400mm x 750mm load platform makes it the ideal rental unit for semi-permanent use on building sites. The 240v powered unit can lift 300kg up to 50m. The base unit includes a half height base enclosure to ensure operators and other site workers are kept at a safe distance giving an overall footprint of 2.3m x 2.6m. The base unit can be delivered to site on its bespoke trailer or for those awkward deliveries we can arrange for a lorry crane delivery.

Specifications
Load Capacity: 300kg
Speed: 20m/min
Max mast height: 50m
Power requirement: 1.5kW 230V
Load platform size: 1.4m x 0.75m x 1.1m L/W/H
Base enclosure size: 2.4m x 2.6m
Max wind speed for operation: 72km/h





Click on the images below to view at full size

Click on the images below to view at full size



GEDA 500z

The GEDA 500 Z is the bigger brother of the 300z with the same legendary build quality and reliability. With a triangular section steel mast, generous 1400mm x 1600mm load platform and 500kg load capacity it’s ideal for a slightly larger site. The 415v powered unit can lift 500kg up to 100m. The base unit includes a half height base enclosure to ensure operators and other site workers are kept at a safe distance giving an overall footprint of 2.7m x 3m. The 500z base unit can also be delivered to site on its bespoke trailer or for those awkward deliveries we can arrange for a lorry crane delivery.

Specifications
Load Capacity: 500kg
Speed: 30m/min
Max mast height: 100m
Power requirement: 5.5kW 415V
Load platform size: 1.6m x 1.4m x 1.1m L/W/H
Base enclosure size: 2.8m x 3m
Max wind speed for operation: 72km/h



500zzp 1.jpg


Geda 500Z/ZP
Transport platform

The GEDA 500 Z/ZP has the same platform dimensions as the 500z, but with the addition of a roof it can be used a transport platform for up to 5 people and materials up to 500kg. In goods only mode it can carry a generous 850kg. Using the same triangular section steel mast as the 500z, with generous 1400mm x 1600mm load platform with multiple loading options, the 415v powered unit can lift up to 100m. The base unit can be fitted with a half height or full height base enclosure to ensure operators and other site workers are kept at a safe distance. The base unit can also be delivered to site on its bespoke trailer or for those awkward deliveries we can arrange for a lorry crane delivery.

Specifications
Load Capacity: 500kg/5 persons or 850kg goods only
Speed: 12m/min as transport platform or 24m/min goods only
Max mast height: 100m max
Power requirement: 5.5kW 415V
Load platform size: 1.6m x 1.4m x 1.1m L/W/H
Base enclosure size: 2.8m x 3m
Max wind speed for operation: 72km/h





Click on the images below to view at full size

Click on the images below to view at full size

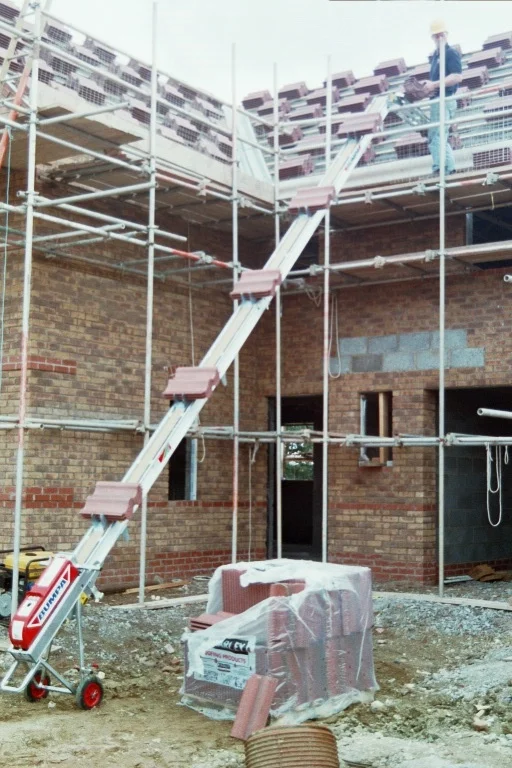

BUMPA HOIST

The Bumpa hoist is a long established, industry recognized tool for tiled roofing applications. Available as an 8m or 10m long conveyor powered by either 110v or petrol engine, both will carry a load of 80kg and can be used in reverse, running backwards, to strip a roof.




Click on the images below to view at full size

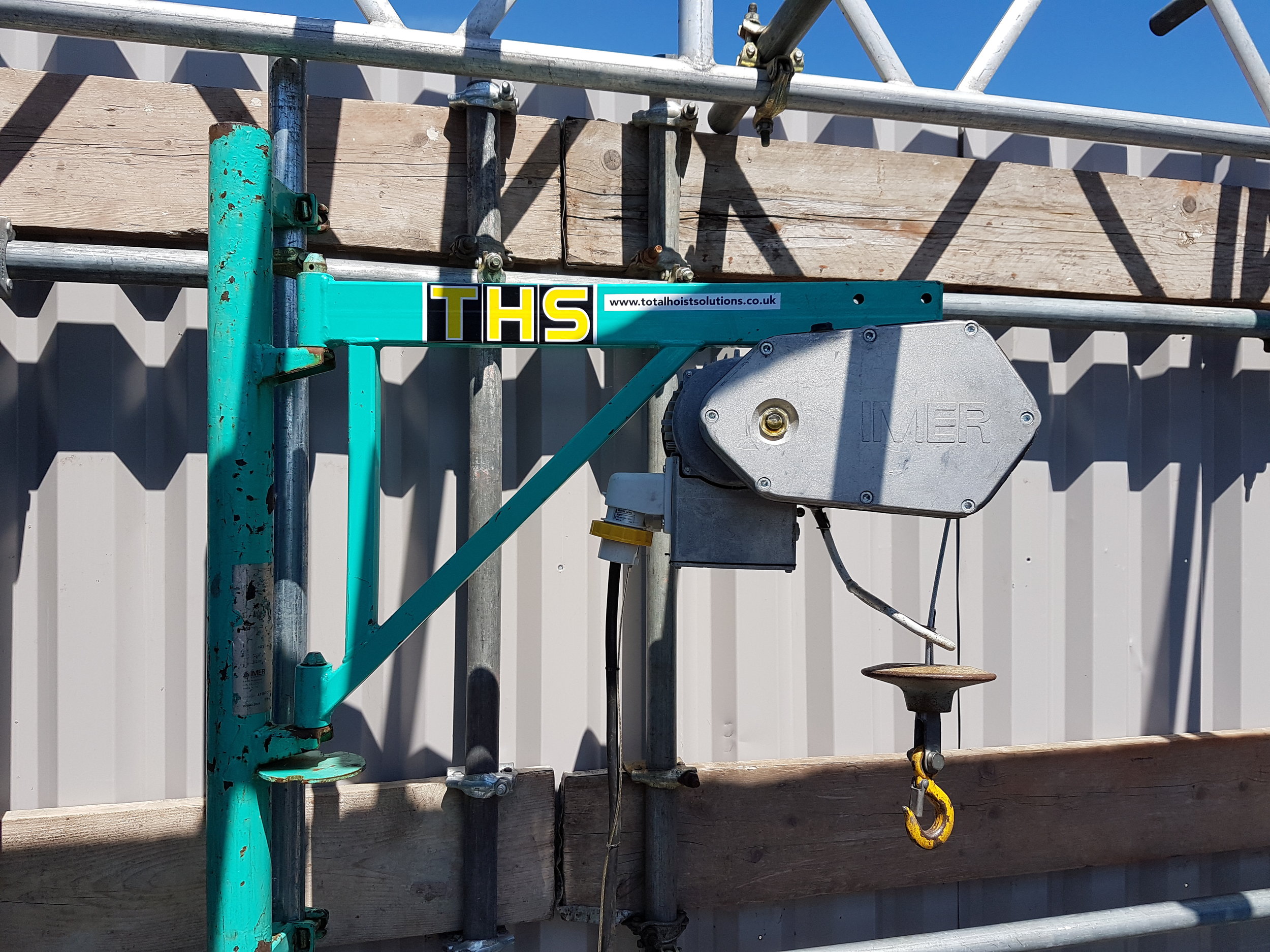

SCAFFOLD HOIST

The scaffold hoist attaches directly to the scaffolding via a bespoke pole which allows the hoist to be rotated through 180 degrees, enabling loads of up to 200kg to be lifted from the ground and moved in over the loading deck to be landed. Hanging from the top of the scaffold and dropping a wire rope down to attach the load via a hook gives the hoist a zero footprint, ideal for small sites and tight spaces.



Click on the images below to view at full size

Click on the images below to view at full size

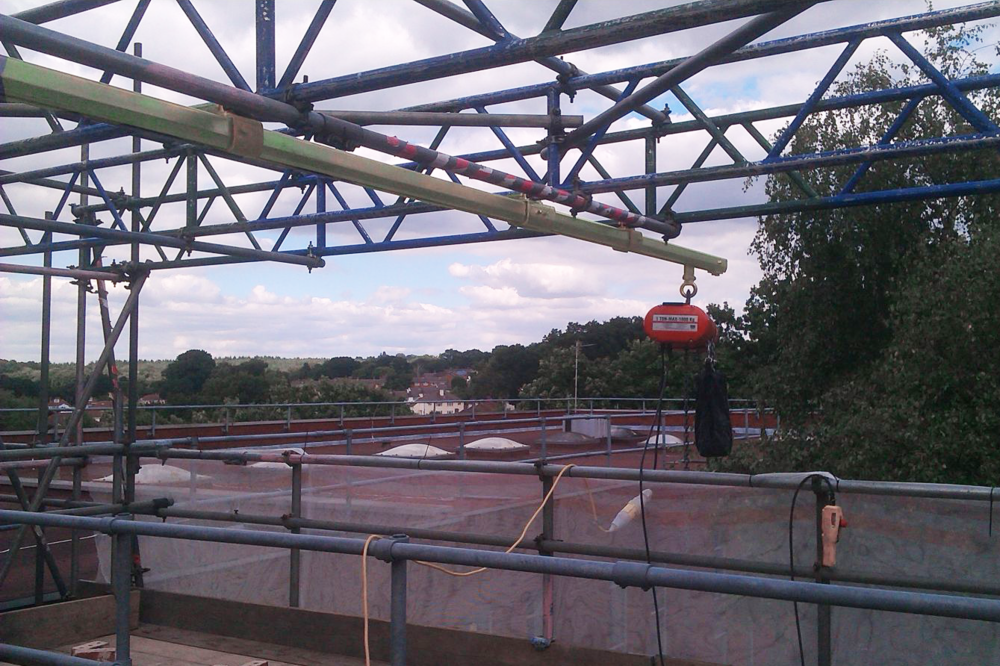

SCAFFOLD RUNWAY

This track system is a vast improvement on I beam based systems. Available with capacities from 250kg to 1.6t and lengths from 1m to however long you need. Able to connect a number of hoist options from manual chain blocks to powered hoists this track can be used to move just about anything. Attached to the scaffolding via support and joining brackets incorporating standard scaffolding couplings, the track should then be inspected and load tested by a competent person.





INSPECTIONS AND REPAIRS

If you have your own hoists which need repairs and/or inspection under the LOLER regulations then THS can help you. We are able to repair most leading brands (subject to parts availability) and inspect and certify most items of lifting equipment. Please contact us to discuss your requirements.





BUY INSTEAD OF HIRE?

THS can help there as well. We can supply a select range of quality lifting and hoisting products and accessories- email or call with you requirements
